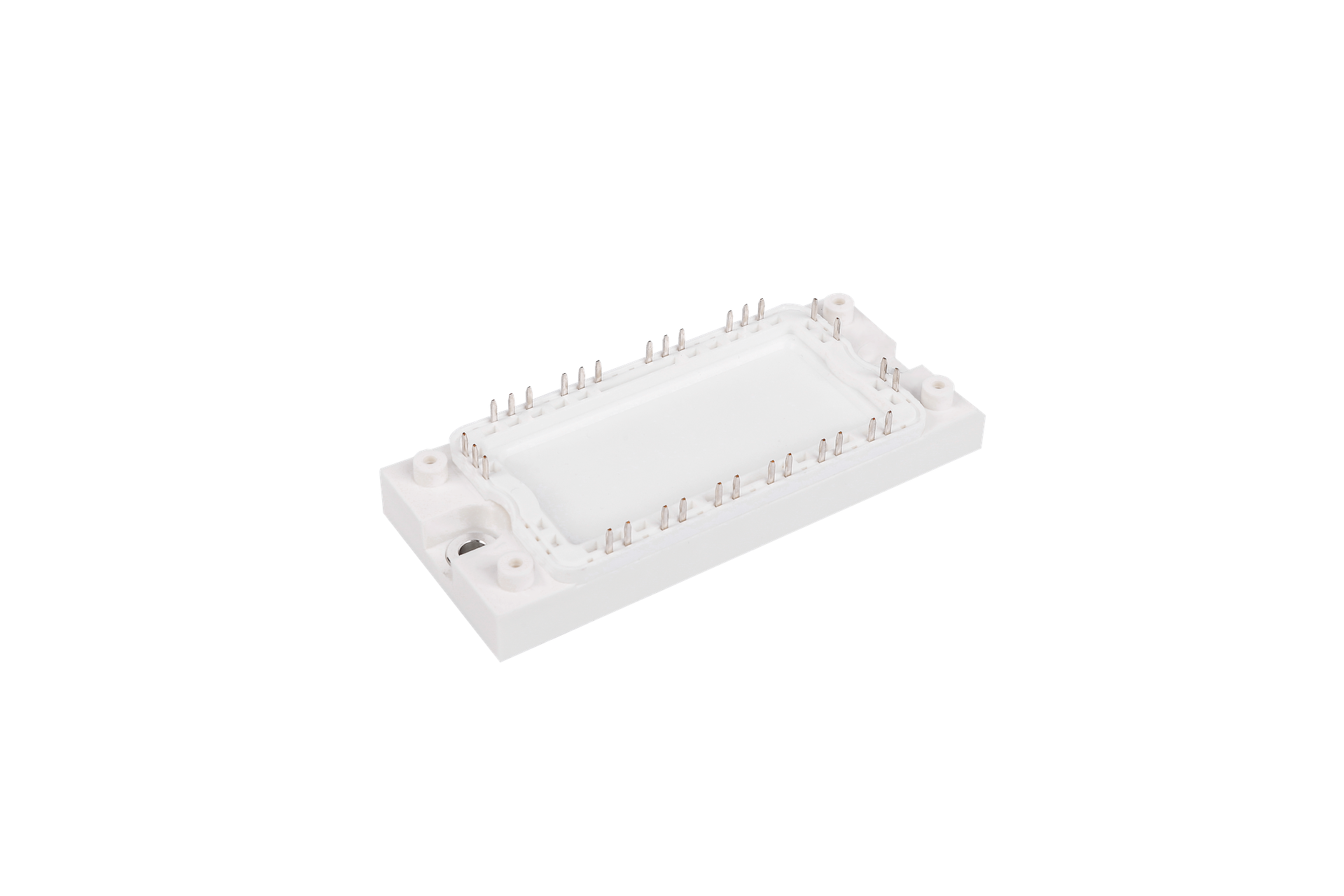

NH

MacMic is one of the few semiconductor companies supplying power MOSFET modules. Customers can utilize the benefit of module configuration to easily realize high power system design instead of paralleling multiple MOSFET discretes. This can also improve production yield and system operation reliability. MacMic MOSFET modules come with some exclusive features. The low Rds(on) of the MOSFET module can work as a high power Synchronous Rectifier to achieve better efficiency in the high power equipment, such as Plating Power. The 6-Pack and Half-Bridge configuration are perfect for the inverter circuit of a battery source 2KW~15KW Motor Drive. The Single-Switch module is also a great replacement to the Mechanical Contactor Relay.

RANGES:
FEATURES:
CIRCUIT CONFIGURATIONS:
APPLICATIONS:
motor drive Electric Vehicle motor scooter

DATASHEET

TC = 25°C unless otherwise noted.
Type VCES
min.
(V)
IC
TC = 25°C
(A)
RDS(ON)
(Ω)
RthJC
(℃/W)
Circuits Packages Datasheet Inquiry

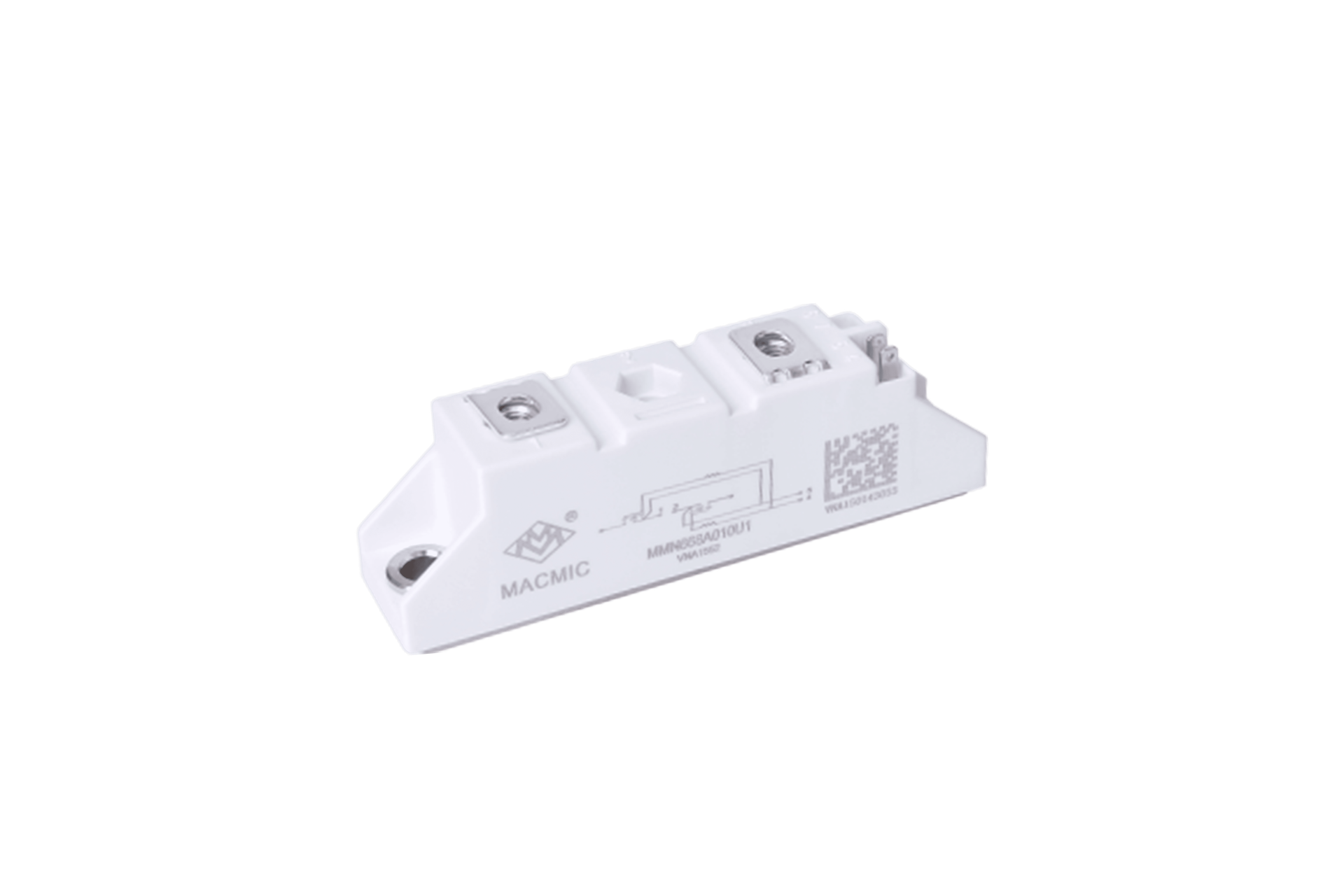

MMN400A010U1 100 400 1.4 0.14 U1 NA Add
MMN400A006U1 60 568 0.65 0.15 U1 NA Add
MMN200H010X 100 200 4.50 0.55 X NH mosfet module Add
MMN668A010U1 100 668 1.10 0.15 U1 NA mosfet module Add

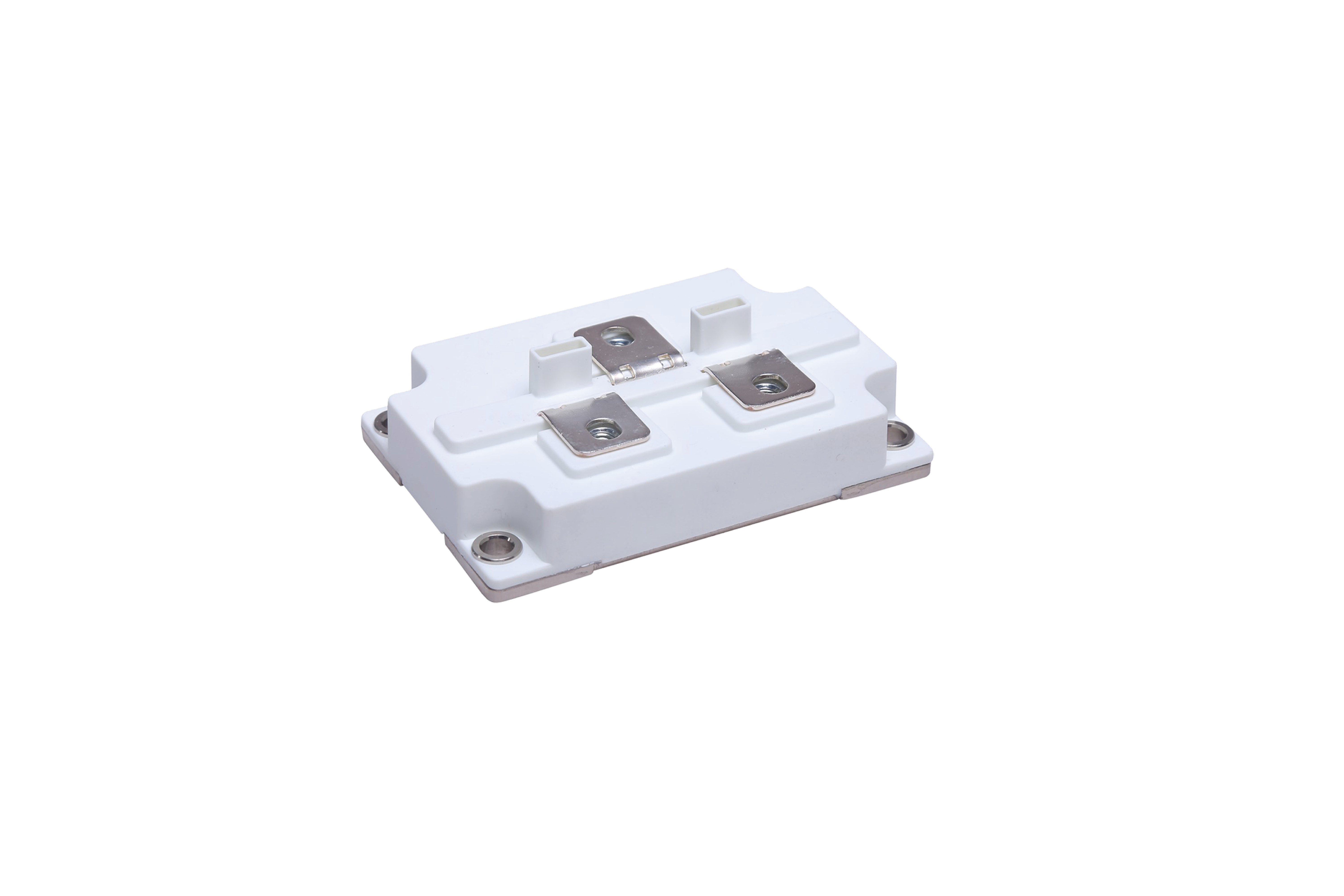

MMN1000DB010B 100 1250 0.57 0.11 B NDB mosfet module Add
MMN600DB012B 120 850 0.64 0.10 B NDB icon Add
MMN600DB015B 150 850 1.20 0.09 B NDB mosfet module Add
