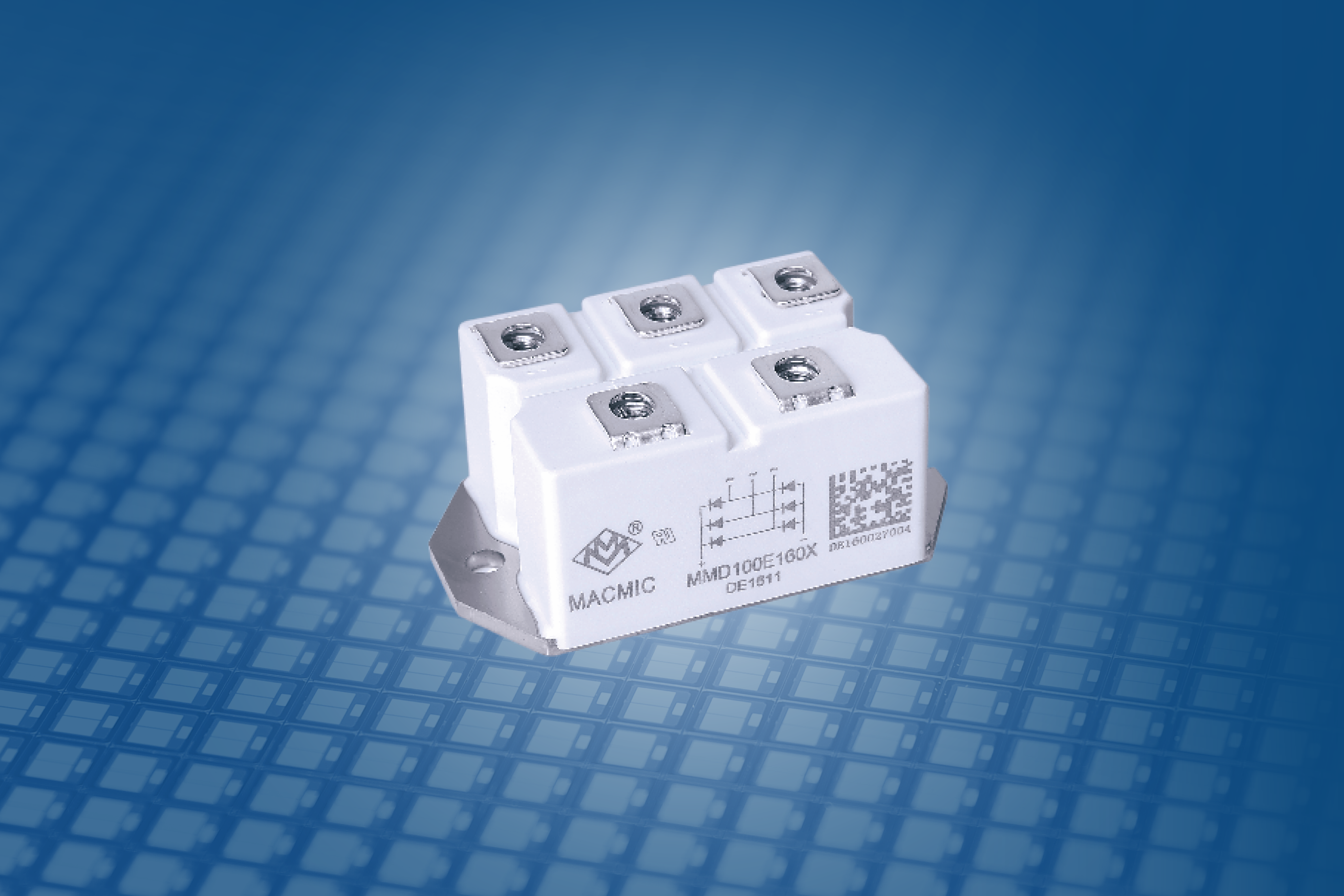

Three-Phase Rectifier Module

RANGES:
.1600-2000V /50-250A

FEATURES:
.Compact Structure
.High Current Capability
.High Blocking Voltage
.High Reliability
.High Performance Price Ratio

CIRCUIT CONFIGURATIONS:
.Three Phase Rectifier Bridge Circuit

APPLICATIONS:
.Welding Machine
.Medical Power Supply
.SMPS
.Inverter


DATASHEET

TC = 25°C unless otherwise noted.
Type VRRM
(V)
ID
(A)
VF
(V)
IFSM
(A)
RthJC
(℃/W)
Packages Zoom Datasheet
MMD200F200X20002001.4520000.09DFViewrectifier module
MMD160F200X20001601.516000.11DFViewrectifier module
MMD100F200X20001001.3510000.15DFViewrectifier module
MMD100E200X20001001.3510000.15DEViewrectifier module
MMD70E200X2000701.357000.18DEViewrectifier module
MMD50L160X1600501.45000.2DLViewrectifier module
MMD70EB160X1600701.357000.18DEBViewrectifier module
MMD100EB160X16001001.3510000.15DEBViewrectifier module
MMD250FB180X18002501.5525000.08DFBViewrectifier module
MMD250FB160X16002501.5525000.08DFBViewrectifier module
MMD200FB160X16002001.4520000.09DFBViewrectifier module
MMD150FB160X16001501.4515000.11DFBViewrectifier module
MMD250F180X18002501.5525000.08DFViewrectifier module
MMD250F160X16002501.5525000.08DFViewrectifier module
MMD200F180X18002001.4520000.09DFViewrectifier module
MMD200F160X16002001.4520000.09DFViewrectifier module
MMD150F180X18001501.4515000.11DFViewrectifier module
MMD150F160X16001501.4515000.11DFViewrectifier module
MMD100E180X18001001.3510000.15DEViewrectifier module
MMD100E160X16001001.3510000.15DEViewrectifier module
MMD70E180X1800701.357000.18DEViewrectifier module
MMD70E160X1600701.357000.18DEViewrectifier module
Type VRRM
(V)
ID
(A)
VF
(V)
IFSM
(A)
RthJC
(℃/W)
Packages Zoom Datasheet
